| Specification |
English |
Metric |
| LOA Length Overall |
38.75 FT |
11.80 M |
| LWL Designed Waterline |
30.83 FT |
9.40 M |
| Beam |
9.83 FT |
3.0 M |
| Draft |
5.75 FT |
1.75 M |
| DSPL |
9370 LBS |
4250 KG |
| Ballast |
4575 LBS |
2075 KG |
| I (Jib Foretriangle) |
41.73 FT |
12.72 M |
| J (Jib Foretriangle) |
12.8 FT |
3.90 M |
| P (Main) |
46.75 FT |
14.25 M |
| E (Main) |
14.75 FT |
4.50 M |
| Water Capacity |
25 Gal |
95 L |
| Fuel Capacity |
10.5 Gal |
40 L |
| Engine |
Yamar 15 hp Dsl |
Construction
hull deck |
GRP with
Divinycell core |
|
Running Rigging
Specifications

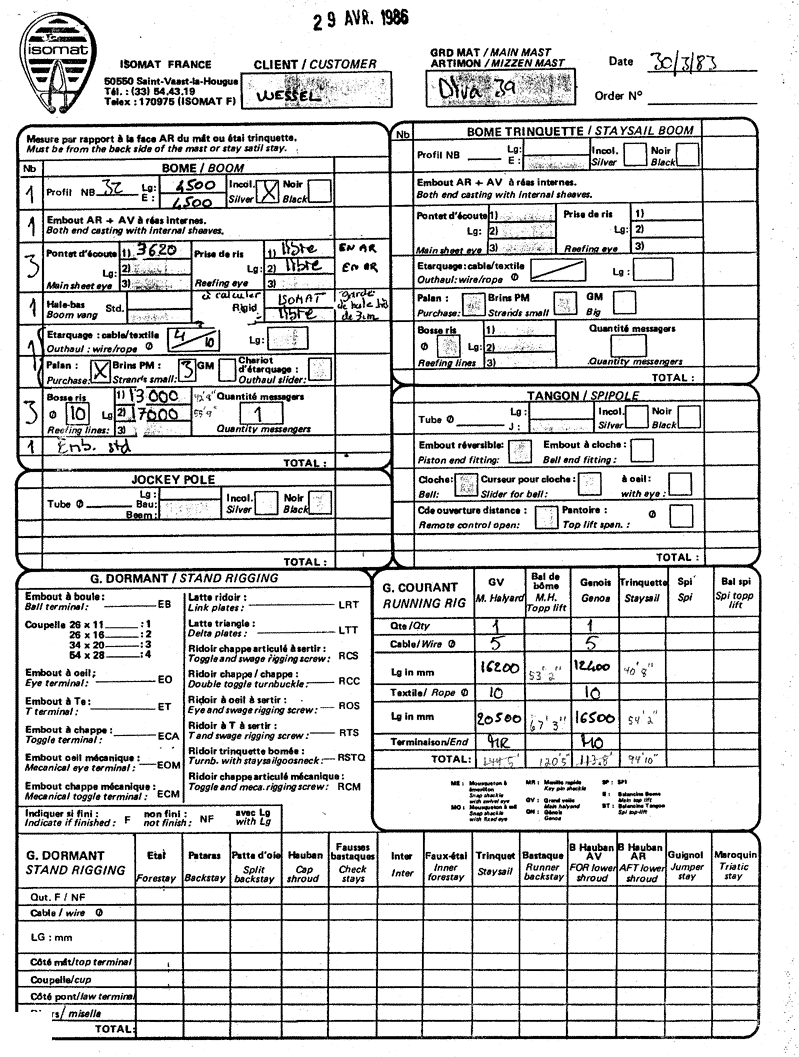

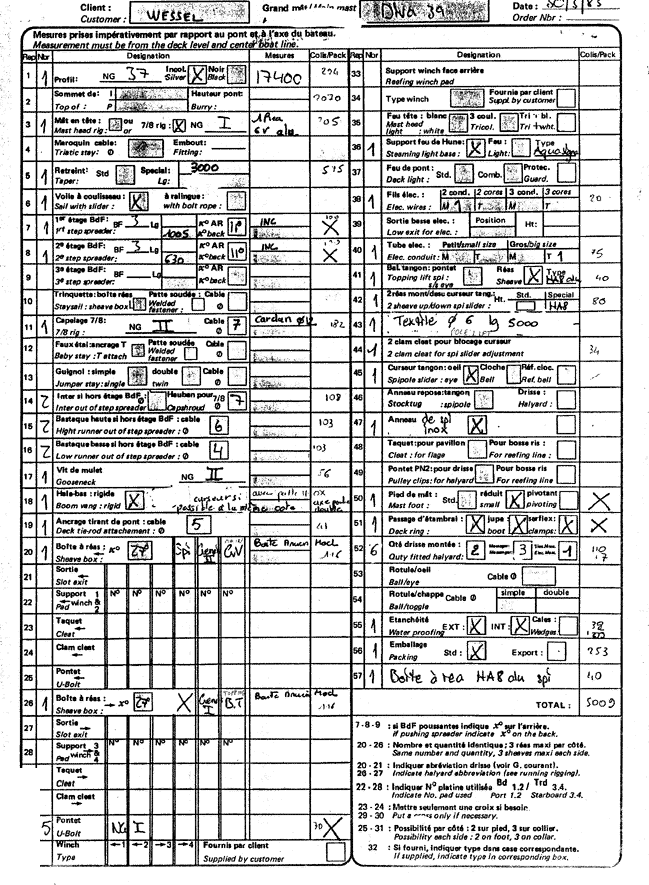

Mast Order (Isomat) :

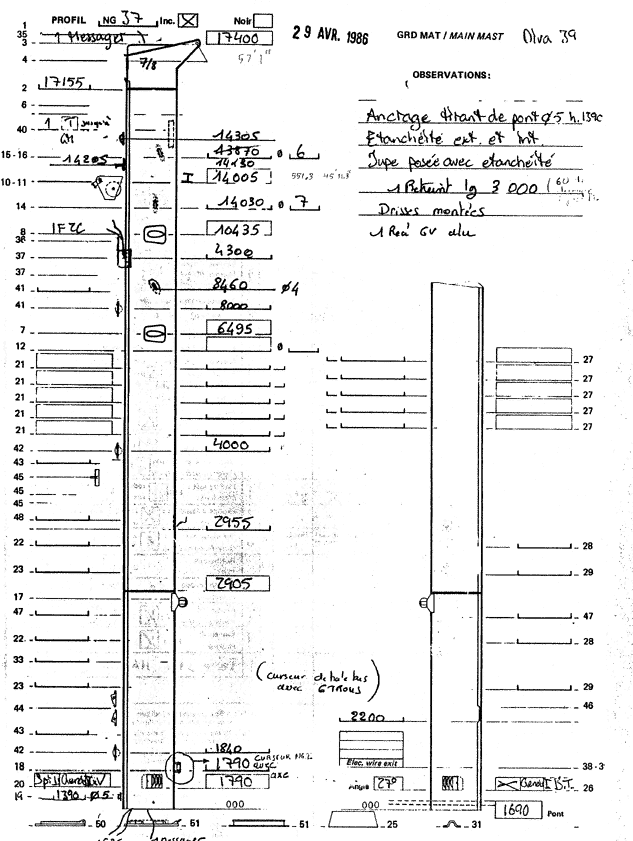

Page 1 (Diagram)
Page 2
Page 3
|
